Introduction
Choosing the right industrial resin for FRP manufacturing or composite manufacturing is a critical decision that directly balances upfront material costs against long-term structural performance. The right resin cannot be selected on price alone; it depends entirely on the specific application, chemical exposure, operating temperatures, and mechanical demands of the final product. Understanding these cost versus performance trade-offs prevents premature infrastructure failure and unnecessary manufacturing expenses.
What is the difference between epoxy, polyester and vinyl ester resin?
Polyester is an economical, general-purpose resin ideal for standard environmental conditions. Vinyl ester is a highly specialized polymer designed for exceptional chemical and corrosion resistance in harsh industrial environments. Epoxy is a premium structural resin that delivers superior mechanical strength, unmatched adhesion to various substrates, and excellent high-performance composite properties.

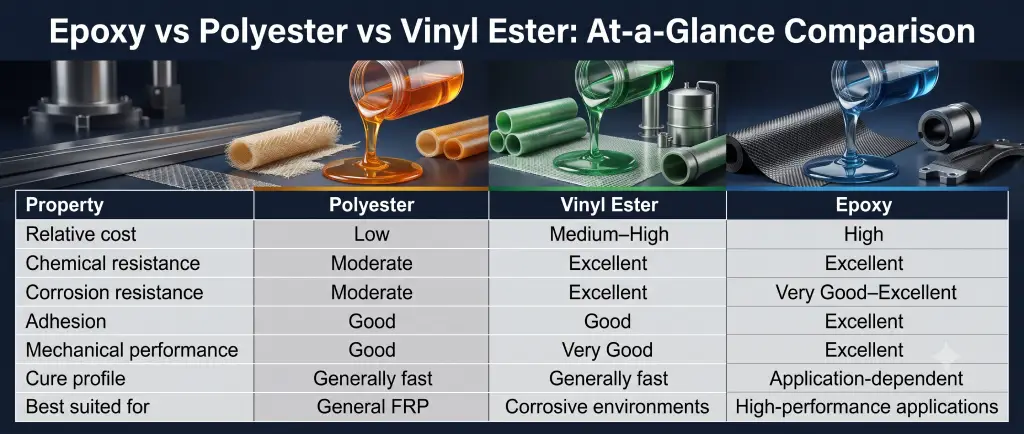

Epoxy vs Polyester vs Vinyl Ester: At-a-Glance Comparison
 (1).webp)
This industrial resin comparison highlights that while polyester offers the most affordable entry point for standard parts, specific operating environments dictate the need for advanced polymers. Choosing between epoxy vs polyester resin, or polyester vs vinyl ester resin, comes down to identifying whether the part will face mechanical stress, aggressive chemicals, or standard weathering.
Polyester Resin: Where It Wins
What is polyester resin used for?
Polyester resin (frequently referred to as unsaturated polyester resin or UPR resin) is the primary workhorse of the composites industry. It offers a significant cost advantage over other resins, making it the default choice for general-purpose FRP manufacturing where extreme chemical or mechanical stress is absent.
The manufacturing appeal of industrial polyester resin lies in its straightforward processing and curing. It typically features a fast cure profile, allowing for rapid production cycles in high-volume manufacturing. While it provides good mechanical properties and adequate moisture resistance, it has notable limitations. Polyester resin applications are generally restricted to environments without highly corrosive chemicals, as aggressive acids or alkalis will break down the polymer matrix over time.
Primary Applications:
* FRP laminates: Cost-effective structural panels and protective casings.
* General industrial components: Lightweight covers, housings, and non-load-bearing parts.
* Panels: Architectural and transportation siding.
* Tanks: FRP polyester resin tanks used strictly for less aggressive environments (e.g., standard water storage).
* Cost-sensitive composite products: Any application where budget is prioritized over maximum tensile strength.
Vinyl Ester Resin: Where It Wins
Why is vinyl ester resin used for chemical tanks?
Vinyl ester resin bridges the gap between polyester and epoxy, combining fast curing times with exceptional durability. It is heavily utilized as a corrosion resistant resin because its chemical structure forms an impermeable barrier against aggressive environments, making it the superior choice for chemical storage.
While it carries a higher cost vs polyester, vinyl ester resin for FRP delivers massive long-term savings by preventing equipment degradation. It provides outstanding chemical and corrosion resistance, maintaining high mechanical strength and thermal stability even when subjected to extreme temperature fluctuations and pressure changes. This makes it vastly preferable to polyester in aggressive environments where structural failure could result in hazardous leaks or expensive downtime.
Primary Applications:
* Chemical storage tanks: Safely holding acids, bleach, sodium hypochlorite, and caustic solvents.
* FRP pipes: Vinyl ester resin for pipes ensures leak-free performance in wastewater and chemical transport.
* Scrubbers: Fume scrubbers and ducts handling corrosive chemical vapors.
* Industrial vessels: Reactors and mixing vessels facing continuous chemical processing.
* Chemical-processing equipment: Any vinyl ester FRP resin application requiring long-term chemical defense.
Epoxy Resin: Where It Wins
What is epoxy resin best used for?
Industrial epoxy resin is best used for applications requiring absolute maximum mechanical performance, load-bearing capabilities, and unmatched adhesion to various substrates, including metals, concrete, and advanced carbon fibers.
Epoxy resin applications demand precise processing and cure considerations, as curing times are highly application-dependent and the resin generally carries a higher relative cost. However, the resulting structural composites exhibit low shrinkage, extreme toughness, and high load-bearing capacity. When combined with carbon or aramid fibers, epoxy FRP resin creates aerospace-grade lightweight components.
Primary Applications:
Industrial flooring: Epoxy resin for flooring provides heavy-duty wear resistance, impact durability, and a seamless surface.
High-performance laminates: Epoxy resin for laminates is used in advanced marine and aerospace components.
Structural composites: Epoxy resin for composites handles continuous mechanical stress and dynamic loads.
Bonding and repair: Utilizing its superior adhesion to permanently join dissimilar materials.
Specialized industrial applications: Components exposed to heavy vibration and extreme stress.
Cost Comparison: Which Resin Is More Economical?
Which resin is cheaper, epoxy or polyester?
Polyester is significantly cheaper than epoxy in terms of raw material cost. However, assessing the true industrial resin cost requires evaluating the expected service life and performance requirements of the final product.
The initial resin cost does not equal the total application cost. A proper resin cost comparison must evaluate processing requirements, production speed, ongoing maintenance, and downtime risks.
Polyester: Usually the cost-focused option. It is highly economical for standard parts.
Vinyl ester: Requires a higher upfront vinyl ester resin cost, but is ultimately more economical for demanding corrosion resistance by eliminating premature replacement and maintenance.
Epoxy: The highest-cost option (epoxy vs polyester cost is significant), justified exclusively in scenarios where extreme mechanical performance, zero-failure structural integrity, and maximum adhesion are required.
Corrosion Resistance & Chemical Performance
Which resin has the best corrosion resistance?
Vinyl ester resin generally has the best corrosion resistance for aggressive, highly acidic, and alkaline industrial environments. While actual resistance depends on chemical concentration and temperature, vinyl ester is engineered specifically to form an impermeable barrier against harsh chemicals.
Polyester: Provides moderate, general-purpose resistance suitable for standard weather exposure and mild, non-corrosive liquids.
Vinyl Ester: The ultimate chemical resistant FRP resin. It seamlessly handles highly acidic, alkaline, and solvent-rich conditions without degrading.
Epoxy: Delivers excellent performance in demanding applications, particularly where both chemical resistance and high structural load-bearing are required simultaneously.
Which Resin Is Best for Tanks, Pipes, Flooring & Laminates?
Selecting the correct polymer defines the success of your infrastructure. Here is how these materials align with high-value applications:
FRP Tanks
Vinyl ester: The best resin for FRP tanks operating in demanding chemical environments.
Polyester: The preferred resin for FRP tanks in general-purpose or less aggressive water service.
FRP Pipes
Vinyl ester: The best resin for FRP pipes requiring heavy-duty chemical and corrosive service.
Polyester: Suitable for appropriate general-purpose and low-pressure water transport applications.
Industrial Flooring
Epoxy: The definitively best resin for industrial flooring due to strict adhesion, high durability, and distinct chemical-performance requirements.
Laminates
Polyester: Ideal for cost-effective general-purpose polyester laminate resin panels.
Epoxy: The best resin for laminates requiring high-performance structural capabilities (epoxy laminate resin).
Vinyl ester: The required choice for resin for composite laminates placed in demanding chemical/corrosive environments.
How Indian Manufacturers Should Choose the Right Resin
Industrial resin suppliers in India offer varying grades of these polymers, making resin selection for manufacturing a nuanced process. To maximize efficiency in composite manufacturing India, manufacturers must evaluate several core variables.
Always define the specific chemical exposure and operating temperature the part will face. Factor in the mechanical requirements and necessary cure requirements dictated by your production process. Ultimately, the required service life must balance against the total cost. Whether producing parts for chemical processing, water treatment facilities, infrastructure, automotive components, construction, or general industrial equipment, Indian FRP manufacturing relies on matching these exact parameters to the correct resin chemistry.
Conclusion: Making the Right Resin Choice
Selecting the ideal industrial resin is a strategic decision that shapes the longevity, safety, and profitability of your manufacturing projects. When comparing epoxy vs polyester vs vinyl ester resin, there is no universal winner,only the perfect match for your specific operational demands.
Understanding the unique strengths of each polymer ensures you don't overspend on unnecessary structural properties or under-spec a tank destined for harsh chemical exposure.
Choose Polyester when: Upfront cost and general-purpose FRP performance are your primary priorities.
Choose Vinyl Ester when: Extreme corrosion and chemical resistance are critical to the application (such as chemical tanks and pipes).
Choose Epoxy when: Superior adhesion, structural mechanical performance, and high-performance composite applications are non-negotiable.
The right resin isn't simply the cheapest or the strongest, it is the resin that delivers the exact required performance at the right overall cost for your specific application.
